mb.c File Reference

modbus common functions More...

#include "mb.h"

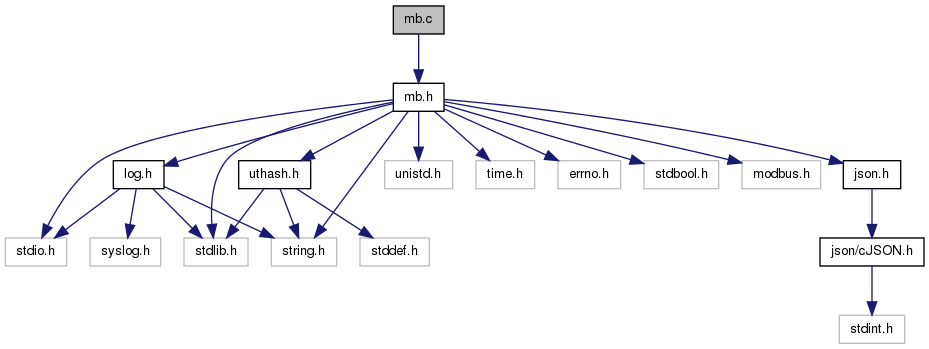

Include dependency graph for mb.c:

Functions
char *	set_modbus_success_resp_str_with_data (char *tid, cJSON *json_arr)
	Set modbusd success response string with data (i.e., read func) More...
char *	set_modbus_success_resp_str (char *tid)
	Set modbusd success response string without data (i.e., write func) More...
char *	set_modbus_fail_resp_str (char *tid, const char *reason)
	Set modbusd fail response string. More...
char *	set_modbus_fail_resp_str_with_errno (char *tid, mbtcp_handle_s *handle, int errnum)
	Set modbusd fail response string with error number. More...

Variables
int	enable_syslog

Detailed Description

modbus common functions

Author

Taka Wang

Function Documentation

char* set_modbus_fail_resp_str	(	char *	tid,
		const char *	reason
	)

Set modbusd fail response string.

Parameters

tid	Transaction ID.
reason	Fail reason string.

Returns

Modbus response string in JSON format.

References BEGIN, cJSON_AddStringToObject, cJSON_CreateObject(), cJSON_Delete(), cJSON_PrintUnformatted(), enable_syslog, ERR, and LOG.

Referenced by main(), mbtcp_cmd_hanlder(), mbtcp_multi_write_req_fn(), mbtcp_read_bit_req_fn(), mbtcp_read_reg_req_fn(), mbtcp_single_write_req_fn(), and set_modbus_fail_resp_str_with_errno().

{
    BEGIN (enable_syslog);

    ERR (enable_syslog, "Fail: %s", reason);

    cJSON *resp_root;
    resp_root = cJSON_CreateObject ();
    cJSON_AddStringToObject (resp_root, "tid", tid);
    cJSON_AddStringToObject (resp_root, "status", reason);

    char * resp_json_string = cJSON_PrintUnformatted (resp_root);
    LOG(enable_syslog, "resp: %s", resp_json_string);
    // clean up
    cJSON_Delete (resp_root);
    return resp_json_string;
}

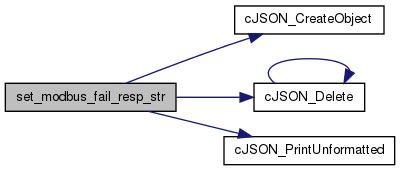

Here is the call graph for this function:

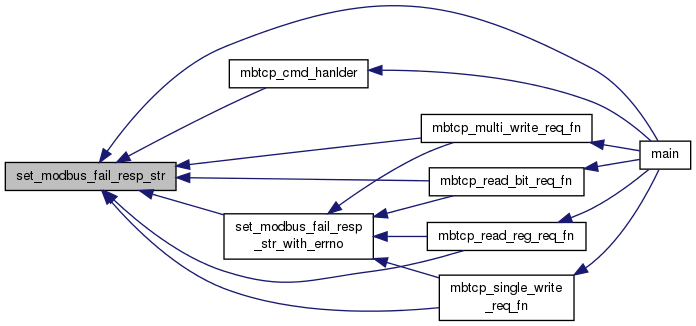

Here is the caller graph for this function:

char* set_modbus_fail_resp_str_with_errno	(	char *	tid,
		mbtcp_handle_s *	handle,
		int	errnum
	)

Set modbusd fail response string with error number.

Parameters

tid	Transaction ID.
handle	Mbtcp handle.
errnum	Error number from modbus tcp handle.

Returns

Modbus error response string in JSON format.

References BEGIN, mbtcp_handle_s::connected, enable_syslog, ERR, and set_modbus_fail_resp_str().

Referenced by mbtcp_multi_write_req_fn(), mbtcp_read_bit_req_fn(), mbtcp_read_reg_req_fn(), and mbtcp_single_write_req_fn().

{
    BEGIN (enable_syslog);

    // [TODO][enhance] reconnect proactively?
    // ... if the request interval is very large,
    // we should try to reconnect automatically

    if (errnum == 104) // Connection reset by peer (i.e, tcp connection timeout)
    {
        handle->connected = false;
    }

    ERR (enable_syslog, "%s:%d", modbus_strerror (errnum), errnum);
    return set_modbus_fail_resp_str (tid, modbus_strerror (errnum));
}

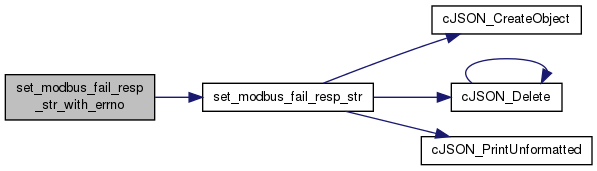

Here is the call graph for this function:

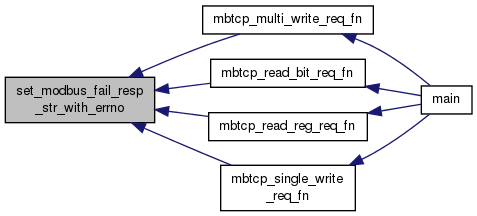

Here is the caller graph for this function:

char* set_modbus_success_resp_str

(

char *

tid

)

Set modbusd success response string without data (i.e., write func)

Parameters

tid	Transaction ID.

Returns

Modbus ok response string in JSON format.

References set_modbus_success_resp_str_with_data().

Referenced by mbtcp_multi_write_req_fn(), and mbtcp_single_write_req_fn().

{
    return set_modbus_success_resp_str_with_data (tid, NULL);
}

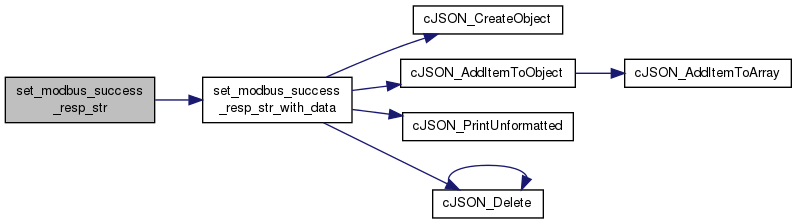

Here is the call graph for this function:

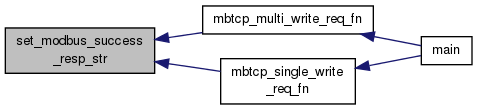

Here is the caller graph for this function:

char* set_modbus_success_resp_str_with_data	(	char *	tid,
		cJSON *	json_arr
	)

Set modbusd success response string with data (i.e., read func)

Parameters

tid	Transaction ID.
json_arr	cJSON pointer to data array

Returns

Modbus ok response string in JSON format.

References BEGIN, cJSON_AddItemToObject(), cJSON_AddStringToObject, cJSON_CreateObject(), cJSON_Delete(), cJSON_PrintUnformatted(), enable_syslog, and LOG.

Referenced by mbtcp_read_bit_req_fn(), mbtcp_read_reg_req_fn(), and set_modbus_success_resp_str().

{
    BEGIN (enable_syslog);

    cJSON *resp_root;
    resp_root = cJSON_CreateObject ();
    cJSON_AddStringToObject (resp_root, "tid", tid);

    if (json_arr != NULL)
    {
        cJSON_AddItemToObject (resp_root, "data", json_arr);
    }
    cJSON_AddStringToObject (resp_root, "status", "ok");

    char * resp_json_str = cJSON_PrintUnformatted (resp_root);
    LOG (enable_syslog, "resp: %s", resp_json_str);
    // clean up
    cJSON_Delete (resp_root);
    return resp_json_str;
}

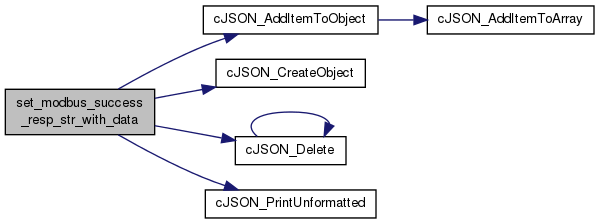

Here is the call graph for this function:

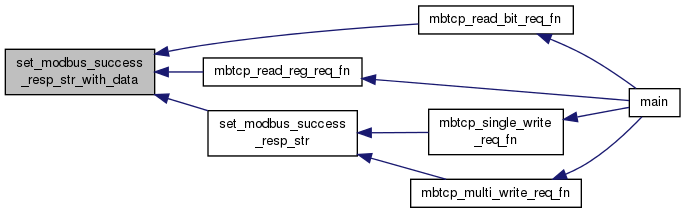

Here is the caller graph for this function:

Variable Documentation

int enable_syslog

Referenced by set_modbus_fail_resp_str(), set_modbus_fail_resp_str_with_errno(), and set_modbus_success_resp_str_with_data().
