mbtcp.c File Reference

modbus tcp functions More...

#include "mb.h"

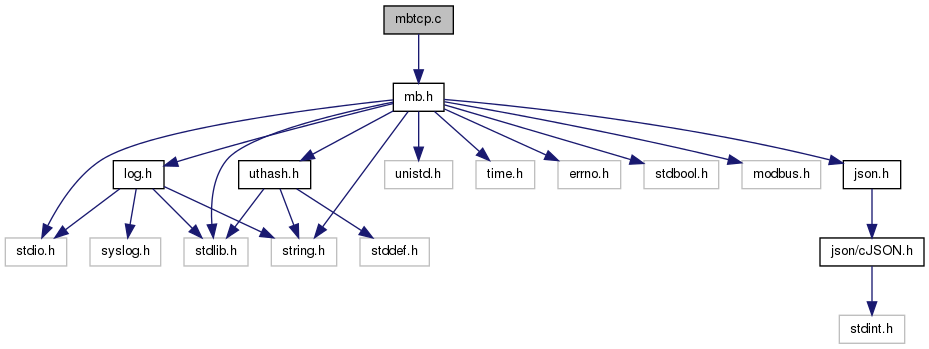

Include dependency graph for mbtcp.c:

Functions
bool	mbtcp_init_handle (mbtcp_handle_s **ptr_handle, char *ip, char *port)
	Init mbtcp handle (to hashtable) and try to connect. More...
bool	mbtcp_get_handle (mbtcp_handle_s **ptr_handle, char *ip, char *port)
	Get mbtcp handle from hashtable. More...
void	mbtcp_list_handles ()
	List all handles in mbtcp hash table. More...
bool	mbtcp_do_connect (mbtcp_handle_s *handle, char **reason)
	Connect to mbtcp slave via mbtcp hashed handle. More...
bool	mbtcp_get_connection_status (mbtcp_handle_s *handle)
	Get mbtcp handle's connection status. More...
char *	mbtcp_cmd_hanlder (uint8_t fc, cJSON *req, mbtcp_fc ptr_handler)
	Generic mbtcp command handler. More...
char *	mbtcp_set_response_timeout (char *tid, long timeout)
	Set mbtcp response timeout in usec. More...
char *	mbtcp_get_response_timeout (char *tid)
	Get mbtcp response timeout. More...
char *	mbtcp_read_bit_req_fn (uint8_t fc, mbtcp_handle_s *handle, cJSON *req)
	Help function. More...
char *	mbtcp_read_reg_req_fn (uint8_t fc, mbtcp_handle_s *handle, cJSON *req)
	Help function. More...
char *	mbtcp_single_write_req_fn (uint8_t fc, mbtcp_handle_s *handle, cJSON *req)
	Help function. More...
char *	mbtcp_multi_write_req_fn (uint8_t fc, mbtcp_handle_s *handle, cJSON *req)
	Help function. More...

Variables
int	enable_syslog
long	tcp_conn_timeout_usec = 200000

Detailed Description

modbus tcp functions

Author

Taka Wang

Function Documentation

char* mbtcp_cmd_hanlder	(	uint8_t	fc,
		cJSON *	req,
		mbtcp_fc	ptr_handler
	)

Generic mbtcp command handler.

Parameters

fc	function code
req	cJSON request object.
ptr_handler	Function pointer to modbus tcp fc handler.

Returns

Modbus response string in JSON format.

References BEGIN, mbtcp_handle_s::ctx, enable_syslog, json_get_char(), json_get_int(), LOG, and set_modbus_fail_resp_str().

Referenced by main().

{
    BEGIN (enable_syslog);

    char * tid = json_get_char (req, "tid");
    mbtcp_handle_s *handle = NULL;

    if (lazy_init_mbtcp_handle (&handle, req))
    {
        char * reason = NULL;
        if (lazy_mbtcp_connect (handle, &reason))
        {
            // set slave id
            int slave = json_get_int (req, "slave");
            LOG (enable_syslog, "slave id: %d", slave);
            modbus_set_slave (handle->ctx, slave);
            return ptr_handler (fc, handle, req);
        }
        else
        {
            // [enhance]: get reason from modbus response
            return set_modbus_fail_resp_str (tid, reason);
        }
    }
    else
    {
        return set_modbus_fail_resp_str (tid, "Fail to init modbus tcp handle");
    }
}

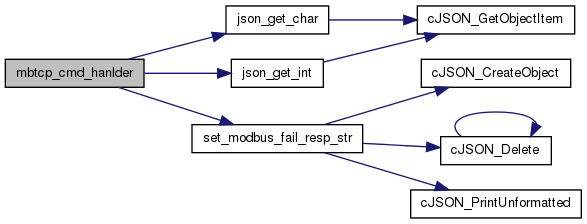

Here is the call graph for this function:

Here is the caller graph for this function:

bool mbtcp_do_connect	(	mbtcp_handle_s *	handle,
		char **	reason
	)

Connect to mbtcp slave via mbtcp hashed handle.

Parameters

handle	Mbtcp handle.
reason	Fail reason string.

Returns

Success or not.

References BEGIN, mbtcp_handle_s::connected, mbtcp_handle_s::ctx, enable_syslog, ERR, mbtcp_key_s::ip, mbtcp_handle_s::key, LOG, and mbtcp_key_s::port.

Referenced by mbtcp_init_handle(), and test_init_tcp_handle_and_connect().

{
    BEGIN (enable_syslog);

    if (handle != NULL)
    {
        if (modbus_connect (handle->ctx) == -1)
        {
            ERR (enable_syslog, "Connection failed: %s", modbus_strerror (errno));
            handle->connected = false;
            *reason = (char *) modbus_strerror (errno);
            return false;
        }
        else
        {
            LOG (enable_syslog, "%s:%s connected", handle->key.ip, handle->key.port);
            handle->connected = true;
            return true;
        }
    }
    else
    {
        ERR (enable_syslog, "NULL handle");
        *reason = "NULL handle";
        return false;
    }
}

Here is the caller graph for this function:

bool mbtcp_get_connection_status

(

mbtcp_handle_s *

handle

)

Get mbtcp handle's connection status.

Parameters

handle

Mbtcp handle.

Returns

Success or not.

References BEGIN, mbtcp_handle_s::connected, enable_syslog, ERR, mbtcp_key_s::ip, mbtcp_handle_s::key, LOG, and mbtcp_key_s::port.

Referenced by test_init_tcp_handle_and_connect().

{
    BEGIN (enable_syslog);

    if (handle != NULL)
    {
        LOG (enable_syslog, "%s:%s connected: %s",  handle->key.ip,
                                                    handle->key.port,
                                                    handle->connected ? "true" : "false");
        return handle->connected;
    }
    else
    {
        ERR (enable_syslog, "NULL handle");
        return false;
    }
}

Here is the caller graph for this function:

bool mbtcp_get_handle	(	mbtcp_handle_s **	ptr_handle,
		char *	ip,
		char *	port
	)

Get mbtcp handle from hashtable.

Parameters

ptr_handle	Pointer to mbtcp handle.
ip	IP address string.
port	Modbus TCP server port string or service name.

Returns

Success or not.

References BEGIN, enable_syslog, ERR, HASH_FIND, mbtcp_key_s::ip, mbtcp_handle_s::key, LOG, and mbtcp_key_s::port.

Referenced by test_init_tcp_handle_and_connect().

{
    BEGIN(enable_syslog);

    mbtcp_handle_s query, *hash_ctx;
    memset (&query, 0, sizeof (mbtcp_handle_s));
    strcpy (query.key.ip, ip);
    strcpy (query.key.port, port);
    // get handle from hash table
    HASH_FIND (hh, mbtcp_htable, &query.key, sizeof (mbtcp_key_s), hash_ctx);

    if (hash_ctx != NULL)
    {
        LOG (enable_syslog, "tcp server %s:%s found", hash_ctx->key.ip, hash_ctx->key.port);
        // call by reference to `mbtcp handle address`
        *ptr_handle = hash_ctx;
        return true;
    }
    else
    {
        ERR (enable_syslog, "tcp server %s:%s not found", query.key.ip, query.key.port);
        *ptr_handle = NULL;
        return false; // not found
    }
}

Here is the caller graph for this function:

char* mbtcp_get_response_timeout

(

char *

tid

)

Get mbtcp response timeout.

Parameters

tid	Transaction ID.

Returns

Modbus response string in JSON format.

References BEGIN, cJSON_AddNumberToObject, cJSON_AddStringToObject, cJSON_CreateObject(), cJSON_Delete(), cJSON_PrintUnformatted(), enable_syslog, END, LOG, and tcp_conn_timeout_usec.

Referenced by main().

{
    BEGIN (enable_syslog);

    cJSON *resp_root;
    resp_root = cJSON_CreateObject();
    cJSON_AddStringToObject (resp_root, "tid", tid);
    cJSON_AddNumberToObject (resp_root, "timeout", tcp_conn_timeout_usec);
    cJSON_AddStringToObject (resp_root, "status", "ok");
    char * resp_json_string = cJSON_PrintUnformatted (resp_root);
    LOG (enable_syslog, "resp: %s", resp_json_string);

    // clean up
    cJSON_Delete (resp_root);
    END (enable_syslog);
    return resp_json_string;
}

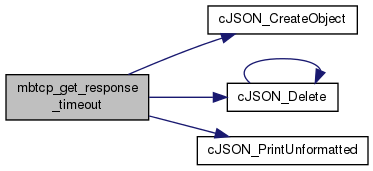

Here is the call graph for this function:

Here is the caller graph for this function:

bool mbtcp_init_handle	(	mbtcp_handle_s **	ptr_handle,
		char *	ip,
		char *	port
	)

Init mbtcp handle (to hashtable) and try to connect.

Parameters

ptr_handle	Pointer to mbtcp handle.
ip	IP address string.
port	Modbus TCP server port string.

Returns

Success or not.

References BEGIN, mbtcp_handle_s::connected, mbtcp_handle_s::ctx, enable_syslog, ERR, HASH_ADD, mbtcp_key_s::ip, mbtcp_handle_s::key, LOG, mbtcp_do_connect(), mbtcp_key_s::port, and tcp_conn_timeout_usec.

Referenced by test_init_tcp_handle_and_connect().

{
    BEGIN (enable_syslog);

    // create a mbtcp context
    modbus_t *ctx = modbus_new_tcp_pi (ip, port);

    if (ctx == NULL)
    {
        ERR (enable_syslog, "Unable to allocate mbtcp context");
        return false; // fail to allocate context
    }

    // set tcp connection timeout
    modbus_set_response_timeout (ctx, 0, tcp_conn_timeout_usec);
    LOG (enable_syslog, "set response timeout: %ld", tcp_conn_timeout_usec);

    // @add context to mbtcp hashtable
    mbtcp_handle_s *handle = (mbtcp_handle_s*) malloc (sizeof (mbtcp_handle_s));
    if (handle != NULL)
    {
        // let alignment bytes being set to zero-value!!
        memset (handle, 0, sizeof (mbtcp_handle_s));
        handle->connected = false;
        strcpy (handle->key.ip, ip);
        strcpy (handle->key.port, port);
        handle->ctx = ctx;

        HASH_ADD(hh, mbtcp_htable, key, sizeof (mbtcp_key_s), handle);
        LOG (enable_syslog, "Add %s: %s to mbtcp hashtable", handle->key.ip, mbtcp_htable->key.port);

        // call by reference to `mbtcp handle address`
        *ptr_handle = handle;

        // @connect to server
        char * reason = NULL;
        mbtcp_do_connect (handle, &reason);
        return true;
    }
    else
    {
        ERR (enable_syslog, "Unable to allocate mbtcp handle");
        return false;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void mbtcp_list_handles

(

)

List all handles in mbtcp hash table.

Returns

Void.

References BEGIN, enable_syslog, END, mbtcp_handle_s::hh, mbtcp_key_s::ip, mbtcp_handle_s::key, LOG, UT_hash_handle::next, and mbtcp_key_s::port.

{
    BEGIN (enable_syslog);

    mbtcp_handle_s * handle;
    for (handle = mbtcp_htable; handle != NULL; handle = handle->hh.next)
    {
        LOG (enable_syslog, "ip:%s, port:%s", handle->key.ip, handle->key.port);
    }

    END (enable_syslog);
}

char* mbtcp_multi_write_req_fn	(	uint8_t	fc,
		mbtcp_handle_s *	handle,
		cJSON *	req
	)

Help function.

FC15, FC16 request handler

Function code 15 and 16 only.

Parameters

handle	Mbtcp handle.
req	cJSON request object.

Returns

Modbus response string in JSON format.

References BEGIN, cJSON_GetArrayItem(), cJSON_GetArraySize(), cJSON_GetObjectItem(), mbtcp_handle_s::ctx, enable_syslog, json_get_char(), json_get_int(), LOG, set_modbus_fail_resp_str(), set_modbus_fail_resp_str_with_errno(), set_modbus_success_resp_str(), and cJSON::valueint.

Referenced by main().

{
    BEGIN (enable_syslog);

    int addr = json_get_int (req, "addr");
    int len  = json_get_int (req, "len");
    char * tid = json_get_char (req, "tid");
    cJSON * data = NULL;
    int ret = 0;
    uint8_t bits[len];  // FC15, VLAs
    uint16_t regs[len]; // FC16, VLAs

    switch (fc)
    {
        case 15:
            data = cJSON_GetObjectItem (req, "data");
            for (int i = 0 ; i < cJSON_GetArraySize (data) ; i++)
            {
                uint8_t subitem = cJSON_GetArrayItem (data, i)->valueint;
                bits[i] = subitem;
                LOG(enable_syslog, "[%d]=%d", i, bits[i]);
            }
            ret = modbus_write_bits (handle->ctx, addr, len, bits);
            break;

        case 16:
            data = cJSON_GetObjectItem (req, "data");
            for (int i = 0 ; i < cJSON_GetArraySize (data) ; i++)
            {
                uint16_t subitem = cJSON_GetArrayItem (data, i)->valueint;
                regs[i] = subitem;
                LOG(enable_syslog, "[%d]=%d", i, regs[i]);
            }
            ret = modbus_write_registers (handle->ctx, addr, len, regs);
            break;

        default:
            return set_modbus_fail_resp_str (tid, "Invalid function code");
    }

    if (ret < 0)
    {
        return set_modbus_fail_resp_str_with_errno (tid, handle, errno);
    }
    else
    {
        return set_modbus_success_resp_str (tid);
    }
}

char* mbtcp_read_bit_req_fn	(	uint8_t	fc,
		mbtcp_handle_s *	handle,
		cJSON *	req
	)

Help function.

FC1, FC2 request handler

Function code 1 and 2 only.

Parameters

handle	Mbtcp handle.
req	cJSON request object.

Returns

Modbus response string in JSON format.

References BEGIN, cJSON_CreateUInt8Array(), mbtcp_handle_s::ctx, enable_syslog, json_get_char(), json_get_int(), LOG, set_modbus_fail_resp_str(), set_modbus_fail_resp_str_with_errno(), and set_modbus_success_resp_str_with_data().

Referenced by main().

{
    BEGIN (enable_syslog);

    int addr = json_get_int (req, "addr");
    int len  = json_get_int (req, "len");
    char *tid = json_get_char (req, "tid");
    uint8_t bits[len];
    int ret = 0;

    if (len > MODBUS_MAX_READ_BITS) // 2000
    {
        return set_modbus_fail_resp_str (tid, "Too many bits requested");
    }
    else
    {
        switch (fc)
        {
            case 1:
                ret = modbus_read_bits (handle->ctx, addr, len, bits);
                break;
            case 2:
                ret = modbus_read_input_bits (handle->ctx, addr, len, bits);
                break;
            default:
                return set_modbus_fail_resp_str (tid, "Invalid function code");
        }

        if (ret < 0)
        {
            return set_modbus_fail_resp_str_with_errno (tid, handle, errno);
        }
        else
        {
            LOG (enable_syslog, "fc:%d, desired length: %d, read length:%d", fc, len, ret);

            /* debug only
            for (int ii = 0; ii < ret; ii++)
            {
                LOG (enable_syslog, "[%d]=%d", ii, bits[ii]);
            }
            */

            // uint8_t array
            return set_modbus_success_resp_str_with_data (tid, cJSON_CreateUInt8Array (bits, len));
        }
    }
}

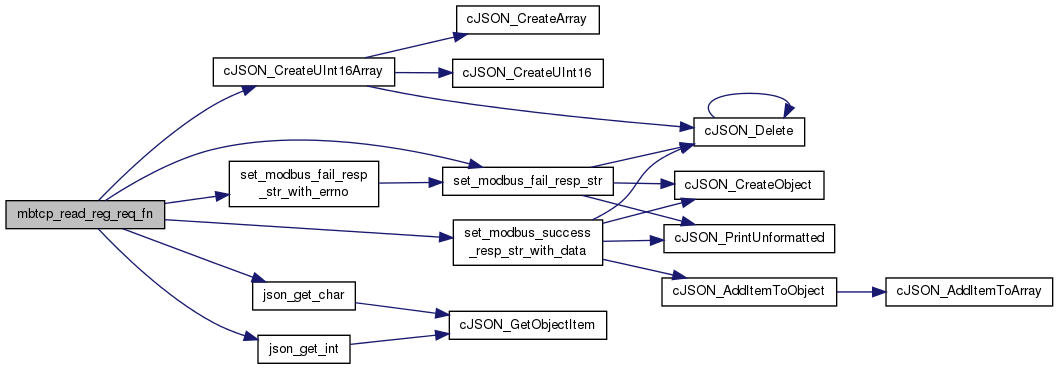

Here is the call graph for this function:

Here is the caller graph for this function:

char* mbtcp_read_reg_req_fn	(	uint8_t	fc,
		mbtcp_handle_s *	handle,
		cJSON *	req
	)

Help function.

FC3, FC4 request handler

Function code 3 and 4 only.

Parameters

handle	Mbtcp handle.
req	cJSON request object.

Returns

Modbus response string in JSON format.

References BEGIN, cJSON_CreateUInt16Array(), mbtcp_handle_s::ctx, enable_syslog, json_get_char(), json_get_int(), LOG, set_modbus_fail_resp_str(), set_modbus_fail_resp_str_with_errno(), and set_modbus_success_resp_str_with_data().

Referenced by main().

{
    BEGIN (enable_syslog);

    int addr = json_get_int (req, "addr");
    int len  = json_get_int (req, "len");
    char * tid = json_get_char (req, "tid");
    uint16_t regs[len];
    int ret = 0;

    if (len > MODBUS_MAX_READ_REGISTERS) // 125
    {
        return set_modbus_fail_resp_str (tid, "Too many registers requested");
    }
    else
    {
        switch (fc)
        {
            case 3:
                ret = modbus_read_registers (handle->ctx, addr, len, regs);
                break;
            case 4:
                ret = modbus_read_input_registers (handle->ctx, addr, len, regs);
                break;
            default:
                return set_modbus_fail_resp_str (tid, "Invalid function code");
        }

        if (ret < 0)
        {
            return set_modbus_fail_resp_str_with_errno (tid, handle, errno);
        }
        else
        {
            LOG (enable_syslog, "fc:%d, desired length: %d, read length:%d", fc, len, ret);

            /* debug only
            for (int ii = 0; ii < ret; ii++)
            {
                LOG (enable_syslog, "[%d]=%d", ii, regs[ii]);
            }
            */

            // uint16_t array
            return set_modbus_success_resp_str_with_data (tid, cJSON_CreateUInt16Array (regs, len));
        }
    }
}

Here is the call graph for this function:

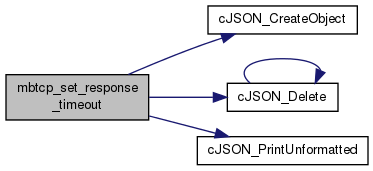

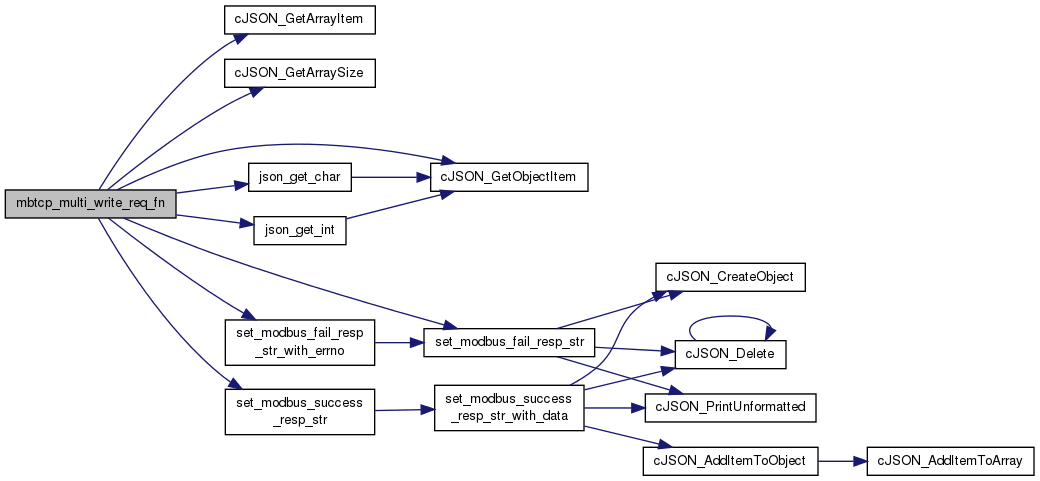

Here is the caller graph for this function:

char* mbtcp_set_response_timeout	(	char *	tid,
		long	timeout
	)

Set mbtcp response timeout in usec.

Parameters

tid	Transaction ID.
timeout	Timeout in usec.

Returns

Modbus response string in JSON format.

References BEGIN, cJSON_AddStringToObject, cJSON_CreateObject(), cJSON_Delete(), cJSON_PrintUnformatted(), enable_syslog, END, LOG, and tcp_conn_timeout_usec.

Referenced by main().

{
    BEGIN (enable_syslog);

    // set timeout
    tcp_conn_timeout_usec = timeout;

    cJSON *resp_root;
    resp_root = cJSON_CreateObject ();
    cJSON_AddStringToObject (resp_root, "tid", tid);
    cJSON_AddStringToObject (resp_root, "status", "ok");
    char * resp_json_string = cJSON_PrintUnformatted (resp_root);
    LOG (enable_syslog, "resp: %s", resp_json_string);

    // clean up
    cJSON_Delete (resp_root);
    END (enable_syslog);
    return resp_json_string;
}

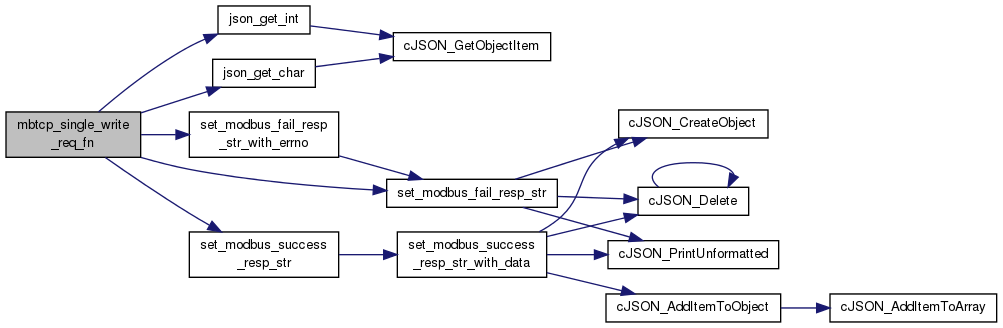

Here is the call graph for this function:

Here is the caller graph for this function:

char* mbtcp_single_write_req_fn	(	uint8_t	fc,
		mbtcp_handle_s *	handle,
		cJSON *	req
	)

Help function.

FC5, FC6 request handler

Function code 5 and 6 only.

Parameters

handle	Mbtcp handle.
req	cJSON request object.

Returns

Modbus response string in JSON format.

References BEGIN, mbtcp_handle_s::ctx, enable_syslog, json_get_char(), json_get_int(), set_modbus_fail_resp_str(), set_modbus_fail_resp_str_with_errno(), and set_modbus_success_resp_str().

Referenced by main().

{
    BEGIN (enable_syslog);

    int addr = json_get_int (req, "addr");
    char * tid = json_get_char (req, "tid");
    int data = json_get_int (req, "data");
    int ret  = 0;

    switch (fc)
    {
        case 5:
            ret = modbus_write_bit (handle->ctx, addr, data);
            break;
        case 6:
            ret = modbus_write_register (handle->ctx, addr, data);
            break;
        default:
            return set_modbus_fail_resp_str (tid, "Invalid function code");
    }

    if (ret < 0)
    {
        return set_modbus_fail_resp_str_with_errno (tid, handle, errno);
    }
    else
    {
        return set_modbus_success_resp_str (tid);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

int enable_syslog

Referenced by main(), mbtcp_cmd_hanlder(), mbtcp_do_connect(), mbtcp_get_connection_status(), mbtcp_get_handle(), mbtcp_get_response_timeout(), mbtcp_init_handle(), mbtcp_list_handles(), mbtcp_multi_write_req_fn(), mbtcp_read_bit_req_fn(), mbtcp_read_reg_req_fn(), mbtcp_set_response_timeout(), mbtcp_single_write_req_fn(), test_init_tcp_handle_and_connect(), test_multiple_add_find(), and test_single_add_find().

long tcp_conn_timeout_usec = 200000

Referenced by mbtcp_get_response_timeout(), mbtcp_init_handle(), and mbtcp_set_response_timeout().
